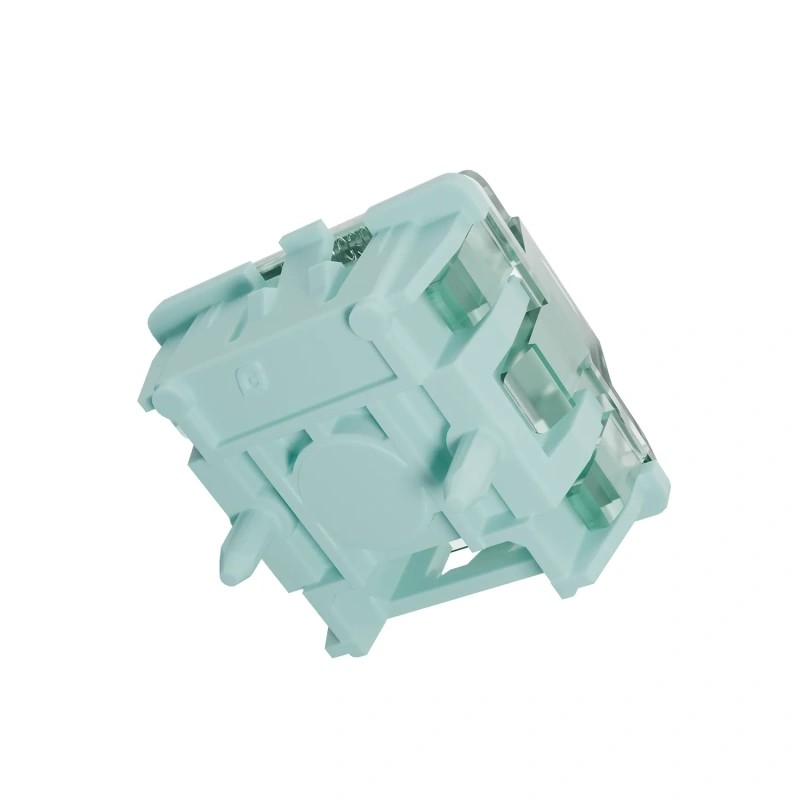

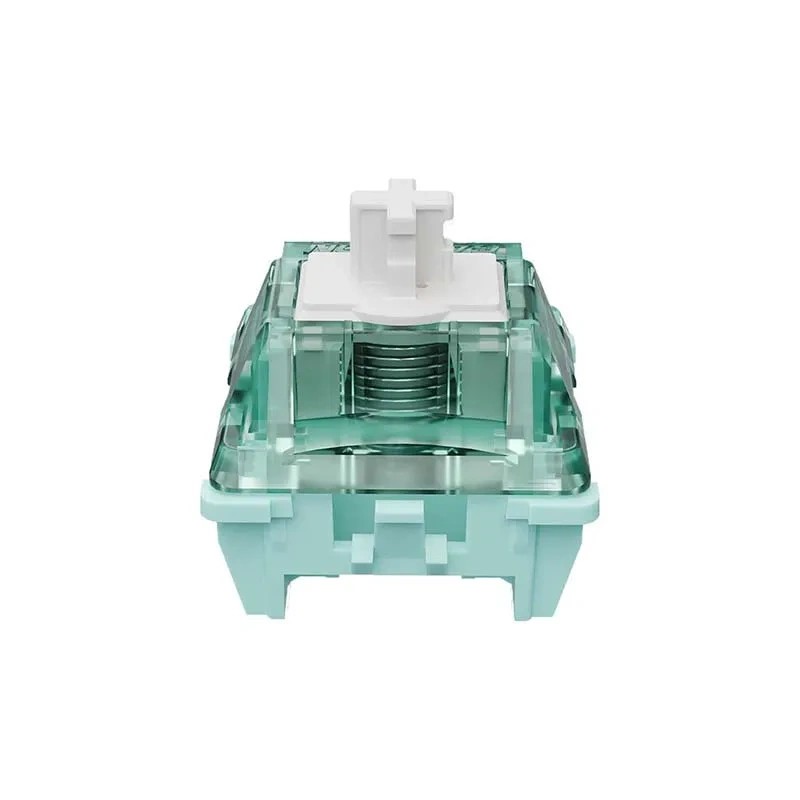

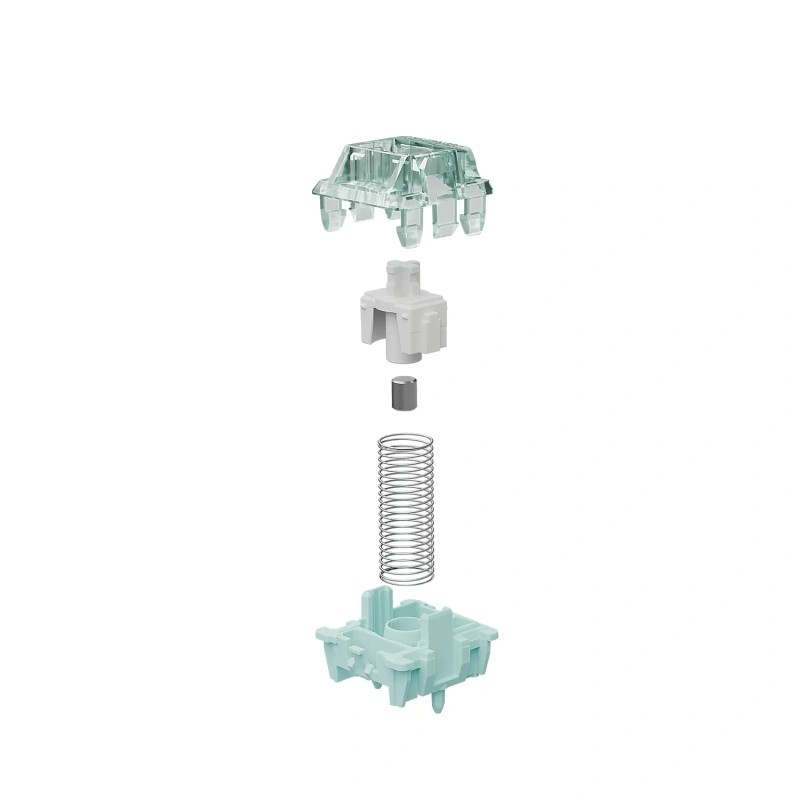

The Gateron Magnetic Jade Pro is a high‑performance linear switch that blends Hall‑Effect precision with a silky‑smooth feel. With a modest 36 ± 5 gf actuation force and a compact 3.5 ± 0.1 mm travel, it delivers instant, jitter‑free keypresses while keeping noise low for both gaming and office use. Its 20‑mm stainless‑steel spring delivers a stable, linear acceleration profile that can be fine‑tuned with the sensor’s magnetic‑field readout, ensuring consistent resistance from the first press to the bottom‑out point (average flux 700 ± 30 Gs). The switch is fully lubricated, features a POM stem for crisp tactile feedback, and supports SMD‑LED illumination, giving you a customizable look without compromising the quiet, low‑sound operation it’s built to deliver. With over 100 million clicks of life, the Jade Pro is a reliable choice for serious gamers and long‑hours typists alike.
Full Magnetic Power Dive into the Future of Fun, New Design, New Upgrade, New Experience
| Kind | Magnetic / HE |
| Type | Linear |
| Profile | |
| Operation Force | 36 ±5gf |
| Bottom out Force | |
| Pre-Travel | Freely setting |
| Total Travel | 3.5 ±0.1mm |
| Spring | 20mm |
| Sound Level | Low |
| Operation Life | Over 100 million |
| Suitable For | Gaming / Office |
| Finger Strike Feeling | |
Housing | |
| Stem | POM |
| Upper Housing | PC |
| Housing Base | PA66 |
| Spring Material | Stainless steel |
| Mounting Pins | 2 pins |
| Lubrication | Yes |
| SMD LED Support | Yes |
| Initial magnetic flux | 120+/-8GS (PCB1.2mm) |
| Bottom-out magnetic flux | 700+/-30GS (PCB1.2mm) |
