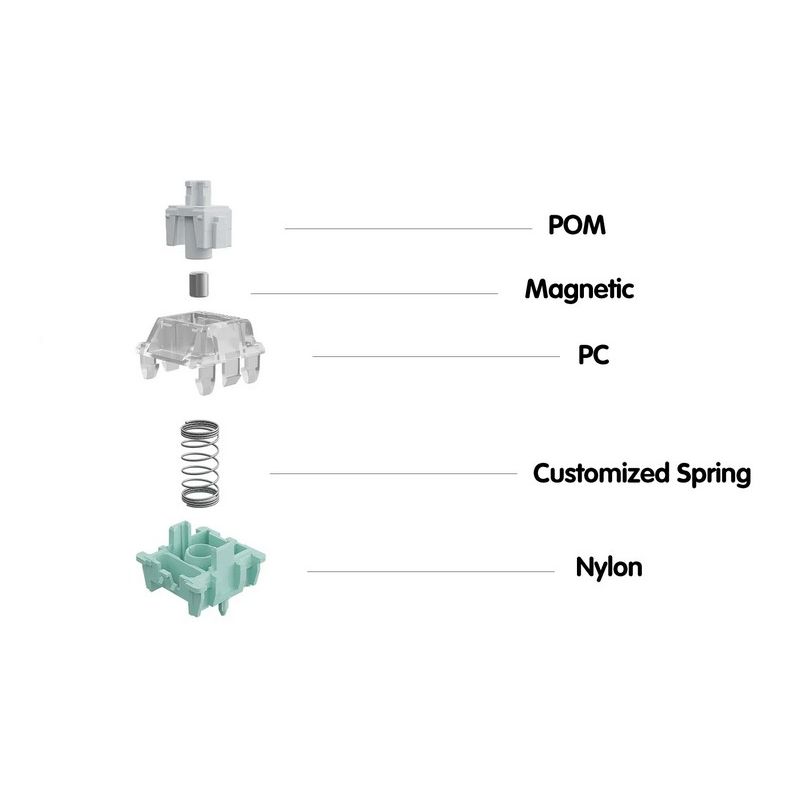

The Gateron Magnetic Jade Switch is a crisp linear key‑switch engineered for both gaming and office environments. With a gentle 30 ± 7 gf actuation force and a compact 3.5 ± 0.2 mm travel, it delivers instant, jitter‑free keypresses while keeping noise low. Its Hall‑Effect sensor reads a magnetic‑field strength of 120 ± 15 Gs at the start of a stroke and 700 ± 80 Gs at bottom‑out, giving consistent linear resistance, a fully lubricated POM stem, PC housing, nylon base, and SMD‑LED illumination—all backed by 100 million clicks of durability.
The first Magnetic Switch in Mahjong Sound Introducing the Magnetic Jade Switch, a revolutionary addition to our collection of mechanical keyboard switches that combines the sophistication of electromagnetic technology with the artistry of Mahjong-inspired HIFI sound. Immerse yourself in the premium sound choice that defines every keystroke, turning your typing experience into a rhythmic symphony of music notes.
| Kind | Magnetic / HE |
| Type | Linear |
| Profile | |
| Operation Force | 30 ±7gf |
| Bottom out Force | |
| Pre-Travel | Freely setting |
| Total Travel | 3.5 ±0.2mm |
| Spring | |
| Sound Level | Low |
| Operation Life | 100 million |
| Suitable For | Gaming / Office |
| Finger Strike Feeling | |
Housing | |
| Stem | POM |
| Upper Housing | PC |
| Housing Base | Nylon |
| Spring Material | |
| Mounting Pins | 2pins |
| Lubrication | Yes |
| SMD LED Support | Yes |
| Initial magnetic flux | 120 ±15Gs |
| Bottom-out magnetic flux | 700 ±80Gs |
