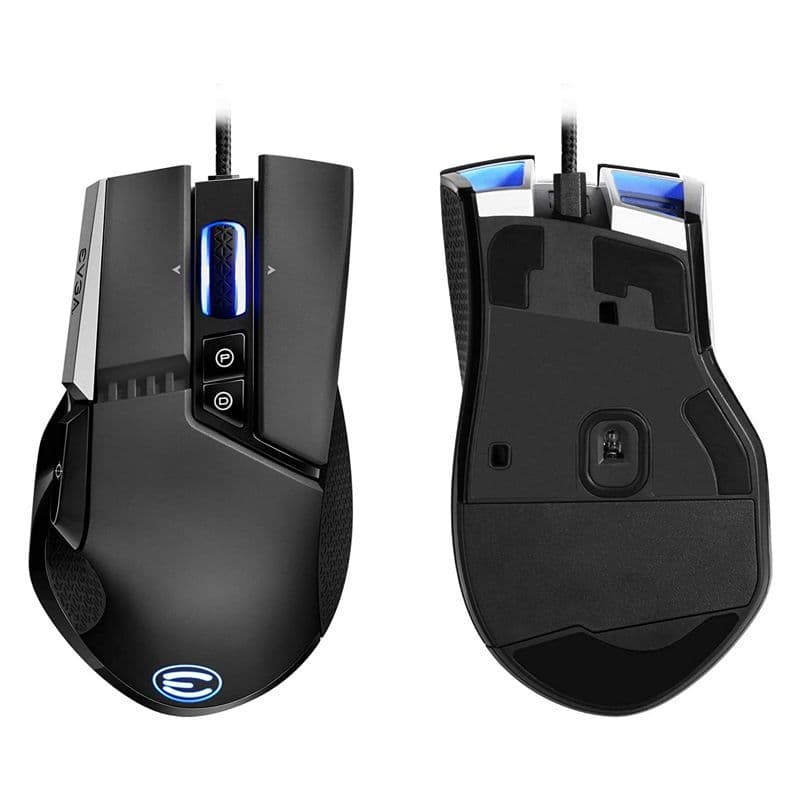

The X17 by EVGA uses an Optical sensor from PIXART, specifically the 3389, providing a DPI/CPI range of 16,000. This results in a tracking speed of 400 ips, and a maximum acceleration of 50g. It uses a USB connection. It weighs in at 103g/128g without the cable and is approximately 122.71 x 80.27 x 44.52 mm (LxWxH).
| Specification | |
| No. of Buttons | 10 |
| No. of Macro Keys | |
| No. of Game Profiles | 5 |
| Connection | USB |
| Cable length | 2m Braided cable |
| Wireless | No |
| Battery Type | No |
| Battery Life | |
| Colourway | Black |
| Ambidextrous | Right handed |
| Coating | |
| Software | EVGA UNLEASH RGB Software |
| Compatible OS | |
| Weights | upto 25g (5 x 5g) |
| Switch (L/R) | Omron |
| Switch Side | |
| Feet / Skates | |
| Encoder | |
| Grip Style | |
| Sensor | |
| Type | Optical |
| Brand | PIXART |
| Model | 3389 |
| Processor | 32-bit Arm Cortex-M33 core |
| Lift off distance | |
| DPI/CPI | 16,000 |
| Memory Size | |
| Max tracking speed | 400 ips |
| Max acceleration | 50g |
| Polling Rate Wired | 8000Hz |
| Polling Rate Wireless | |
| FPS | |
| NVIDIA Reflex | |
| Angle Snapping | |
| Lighting | |
| Colour Options | 3-zone RGB Lighting |
| Lighting Effect | |
| Dimensions & Weight | |
| Size | |
| Dimension (LxWxH) | 122.71 x 80.27 x 44.52 mm |
| Weight (grams) | |
| Weight w/o cable | 103g |
